» 5066 double controlled double pressure gauge

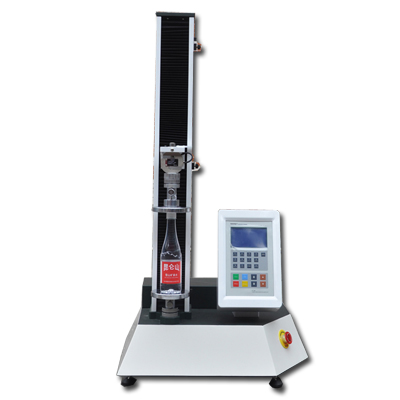

- PT-5066 dual control computer servo system
SYSTEM PET BOTTLE COMPRESSION RESISTANCE TESTER COMPUTER
Design standard: QB/T18682665
Double double display control computer servo system top pressure instrument uses: the equipment is used for on the food processing industry packing bag, a bottle body and other containers of physical performance test, testing packaging bag of tensile force, tensile strength, elongation at break, tear force, peel strength, heat sealing strength and pressure. Can also test packaging bottle top pressure strength, top pressure, holding pressure deformation deformation. Equipped with the corresponding fixture can be measured with the bottle and packaging with edgewise compressive properties of tensile and tear test film.
Dual display and dual control computer servo system of the top pressure characteristics: PT-5066 dual dual - controlled computer servo system for the upgrading of the top pressure meter, for the control software has been upgraded to create a remote service function, greatly improving the efficiency of technical services.
1, machine structure used by the senior paint treatment of aluminum extrusion sealing board built-in high precision, low resistance, gapless double rolling line screw and a guide post, improve the load efficiency and structure rigidity;
2, the control system uses the full digital AC server to control the high response frequency of AC servo motor, ensure that the transmission system is efficient, stable transmission, low noise, speed and accuracy can be controlled within 0.2%;
3, the computer system uses commercial computer as the main control unit, with the company's full open test software, can complete all the test parameters set, working state control, data acquisition and processing analysis, the results show and print output;
4, the product performance is stable and reliable, high measurement accuracy, testing software is powerful, easy to operate and easy to understand.
5, the whole machine adopts imported accessories, completely build domestic high-end products. 1, software specifications:
² Using windows work platform, the parameters of the dialog box to the form of the processing, the operation is simple;
² Using a single screen operation, do not need to screen switch;
² The software interface has three languages: Simplified Chinese, traditional Chinese and English;
² Self regulation test report mode;
² Test data can be directly called in the main screen;
² Data comparison of multiple curves can be selected by using the method of translation, comparison and so on;
² With a variety of measurement units, metric can switch;
² Automatic return function;
² With automatic correction function;
² Do the top pressure, lateral pressure, tensile, tear, pull hold, holding pressure strength and deformation test etc.;
² With automatic magnification to achieve the most appropriate size of the graphics;
² Function of custom test method;
² Operation analysis of test data;
2, hardware specifications:
Model
PT-5066
Capacity selection
100、200KGO ptional one
Test items
The top pressure, the deformation of the top pressure, the deformation of the holding pressure, the tensile strength of the film, and the tearing strength of the film
Measurement and control software
All open test software under the Windows platform
Accuracy of measurement
Better than ±0.5%
Force resolution
1/200，000
Effective range of measurement
0.5~100%F.S
Deformation display accuracy
Better than ±0.5%
Test speed range
0.5～1000mm/min，Can be arbitrarily set
Test maximum stroke
Maximum 650mm, no fixture
Effective test space
Distance 120mm，Left and right distance ∝
Unit switch
A variety of measurement units, including international units, users can also customize the required units
Stop mode
Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special function
Can be held to pull and hold pressure test
Standard configuration
Top pressure fixture (120mm) 1, film tensile fixture 1, data lines and software systems 1 sets, 1 sets of Lenovo brand computers, HP color printer 1, the instrument power supply line 1, CD operating instructions 1, 1 copies of the certificate, 1
Machine size
About 58×45×125cm(W×D×H)
Machine weight
About 75kg
Power
AC servo motor
Power Supply
1PH，AC220V，50/60Hz，10A Or specify
Control mode
Double control
